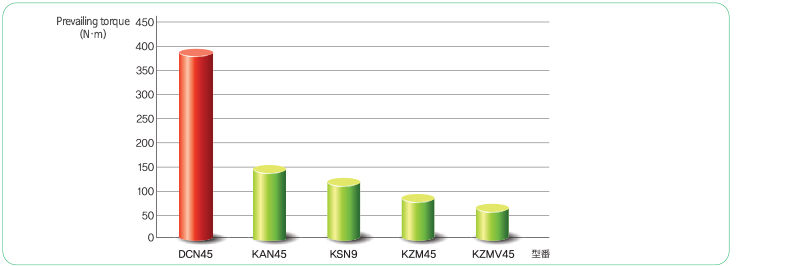

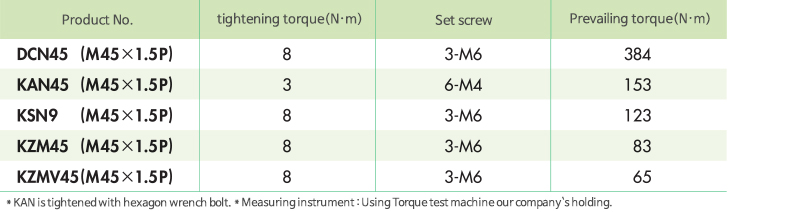

- Prevailing Torque of DCN is higher than existing Lock nut
- Install and Removal of Lock nut body is easier than existing Lock nut
- Especially, DCN has excellent self-locking feature under vibration and high-speed rotation.
- DCN can get a relatively large thrust load.
- Easy run-out adjustment.
- It is divided in two different thicknesses have wide choice.


- Fixing Machine Tool Bearings
- Fixing Ball screw support bearings
- Part which requiring the axial positioning, And so on

- Material : S45C
- Set screw materia : SCM440
- Hardness : HrC 22~28
- Surface treatment : Black phosphated coating
- Screw preciseness : ISO 4H
- Screw angularity : ㅗ0.002 ~ 0.007mm
